“Ultimate POS by itdev88” Documentation by “itdev88” v1.0.0

“Ultimate POS ”

Created: 01/05/2021
By: Ahmed
Email: adwateknologi@gmail.com

Thank you for purchasing my application script. If you have any questions that are beyond the scope of this help file, please feel free to email via my user page contact form here. Thanks so much!

What needs to be prepared?
Android Application
Import Database
Manage Rest API
Manage Backend
Support
Import File to Hosting/Server
firebase
Tutorial freshchat
change package name

B) What needs to be prepared? - top

Before installing, you must prepare the following:

Server

preferably debian or ubuntu
Using Minimum PHP 7.0 or Maximum PHP 7.1
Server already installed mySQLi
Enable Mod_rewrite and also GD Lib
you have the strict mode disabled (It’s enabled by default)
You have PHP error reporting set to Off.

Android Studio

make sure you are using the latest android studio
make sure your android studio has kotlin installed, tutorial click here
you can start the installation application

C) Android Application - top

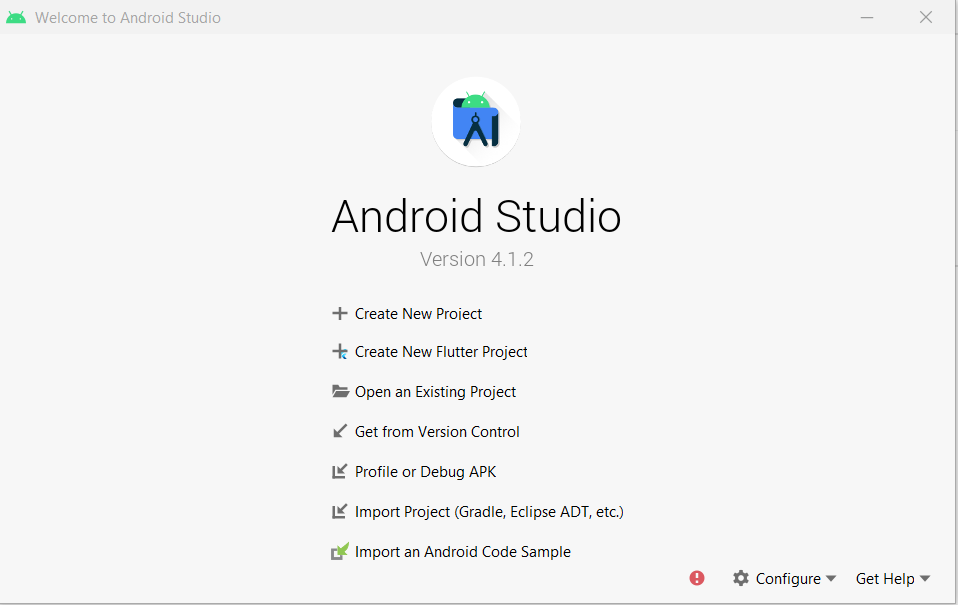

extraxt application folder to your computer and open android studio, make sure you have installed Kotlin into your android studio. after that select Import project (Gradle, Eclipse ADT, etc), select the folder named myresto and import it into the android studio project..

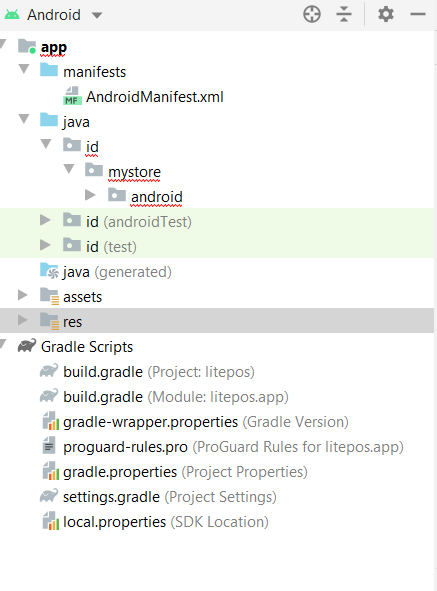

This page is a page in Android Studio, here is a structure that we created in this application.
HTML Structure

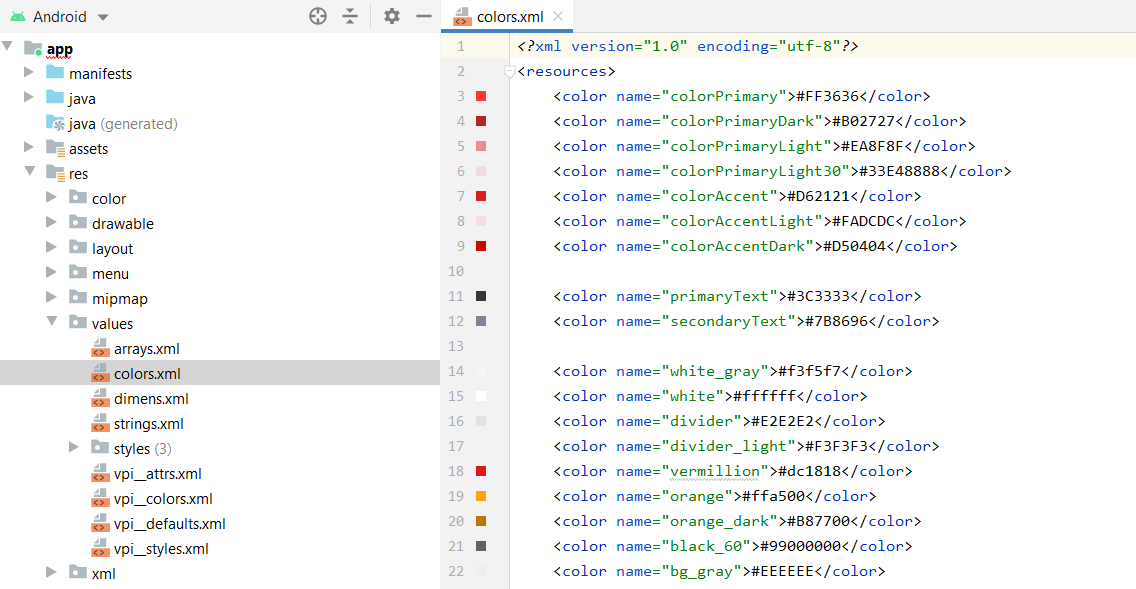

To change the color of your application, simply go to the value folder and look for the colors.xml file:

To change change android package name, tutorial click here

to change app currency go to utils/appConstant.kt and look for this line

object CURRENCY{
        val UNITVALUE = "$"
    }

to change the link term, about and new tab, open the file utils/appConstant.kt and look for this line

object URL{
        val ABOUT = "http://yourdomain.com/api/pages/about.php"
        val TERM = "http://yourdomain.com/api/pages/term.php"
        val PRIVACY = "http://yourdomain.com/api/pages/privacy.php"
        val PREMIUM = "http://yourdomain.com/api/pages/premium.php?"
        val NEWS = "http://yourdomain.com/api/pages/news.php"
    }

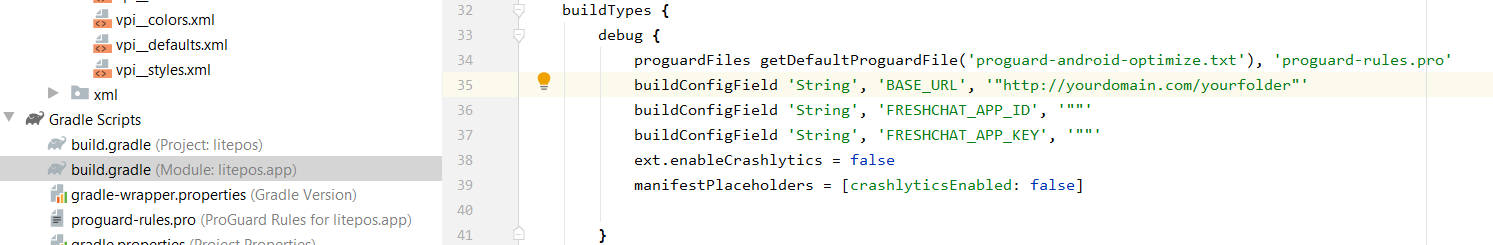

To change your api url, just open the build.gradle file and look for a line like the following:

make sure you have uploaded the api script to hosting or the server including importing the database

D) Import Database - top

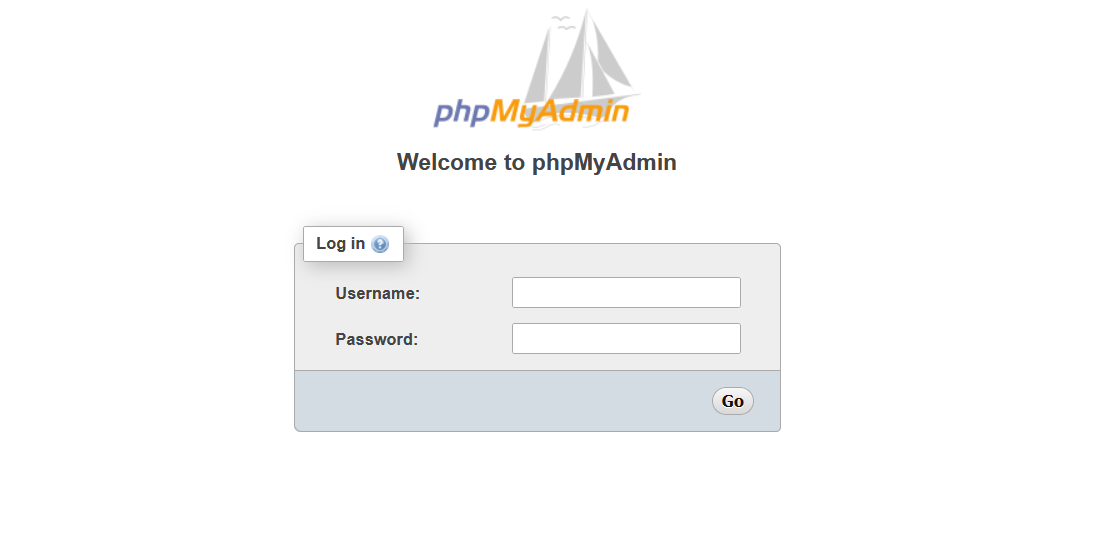

here is a guide on importing databases into your server, make sure you already have a server / hosting that has php mysql, if you have, please login.

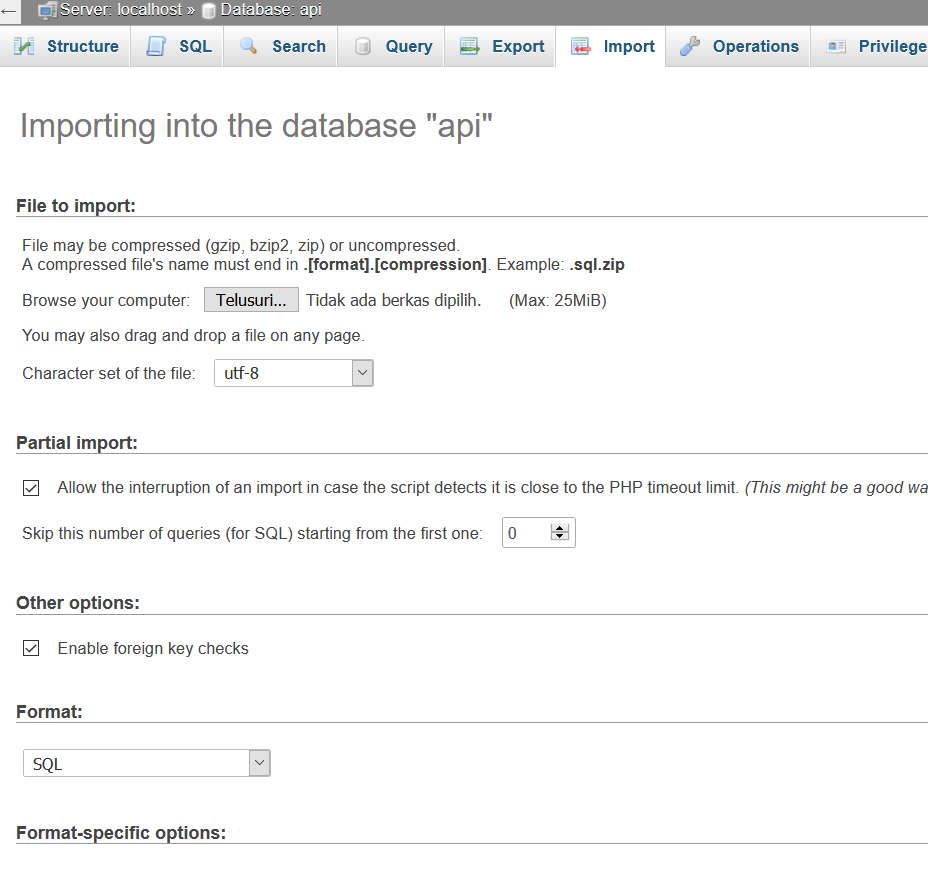

select your database name, then look for the import tab, then select the .sql file in the api folder, and click the go button, then your database has been imported, then set up rest api.

E) Manage Rest API - top

make sure you already have a server or hosting ready to use.

open the public_html folder and import the api folder in the purchase package.

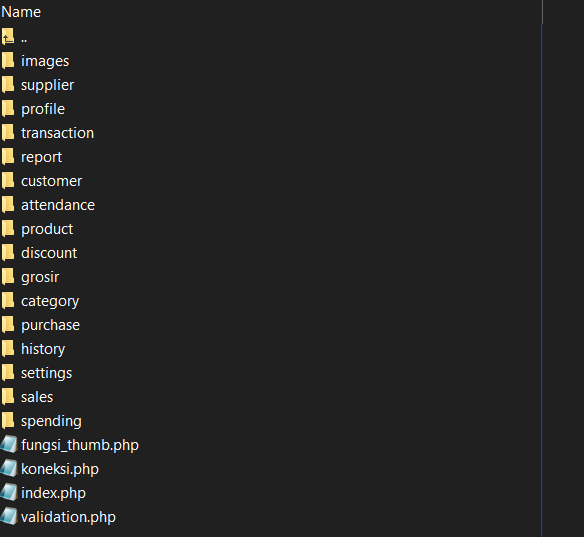

The following is the structure of the script that you have uploaded.

open the koneksi.php file and change the database account according to yours.

take the url you have for example http://yourdomain.com/yourfolderapi or http: //899.90.899/yourfolderapi, open android studio and enter your url in the BASE_URL line

finished, your application is ready to use.

F) Manage Backend - top

make sure you already have a server or hosting ready to use.

open the public_html folder and import the backend folder in the purchase package.

open the koneksi.php file and change the database account according to yours.

finished, your backend is ready to use.

E) Support - top

For help, change and add features and others, please use the contact us feature at codecanyon or contact us via email: itdev88sby@gmail.com

F) Import File to Hosting/Server - top

Upload all the files that we provide in the public_html folder. then the online_store content can be moved to public_html if you want it as the main website, later people will open yourdomain.com/id-namatoko. If you don't use the store name, only the domainname.com will be redirected to landing_page to become yourdomain.com/landing_page. if you want to change it to namadomain.com/welcome or something else, please rename the landing_page folder. in the online_store/application/theme/store/layout.php folder at the bottom, please change it according to your domain name, for example,domain.com/landing_page.

G) firebase - top

full tutorial is here https://firebase.google.com/docs/android/setup
select option 1.

H) Tutorial freshchat - top

register at https://www.freshworks.com/live-chat-software/signup/
Once registered, please login
then enter the gear mark settings menu, select the mobile SDK menu menu
there is an app key, in android sudio look for build.gradle (Module:appname), open it and edit it according to the app key.
do syncronization.
open the firebase page where you have created an account for this project, select the gear or settings icon and open the cloud messaging tab. there is a Server key, copy all the tokens and return to the settings page on freshchat earlier. enter in the form server key at the bottom in the words FCM Server API Key (Android) paste it in the form and click save
done.

I) change package name - top

you can follow this tutorial https://medium.com/easyread/how-to-rename-package-in-android-studio-dd7ae1f9fe8d
or
https://rasupe.com/cara-change-name-package-di-android-studio/

one more thing, thank you for buying my script, I will always update the application to make it even better.

Ahmed

Go To Table of Contents
